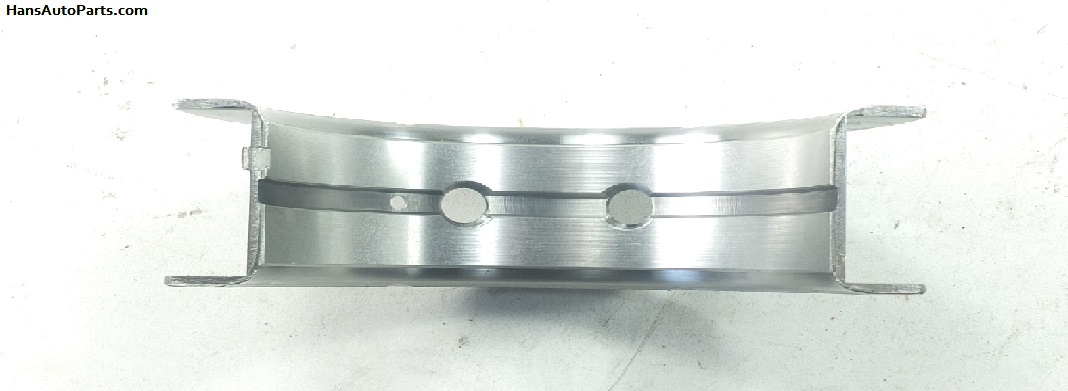

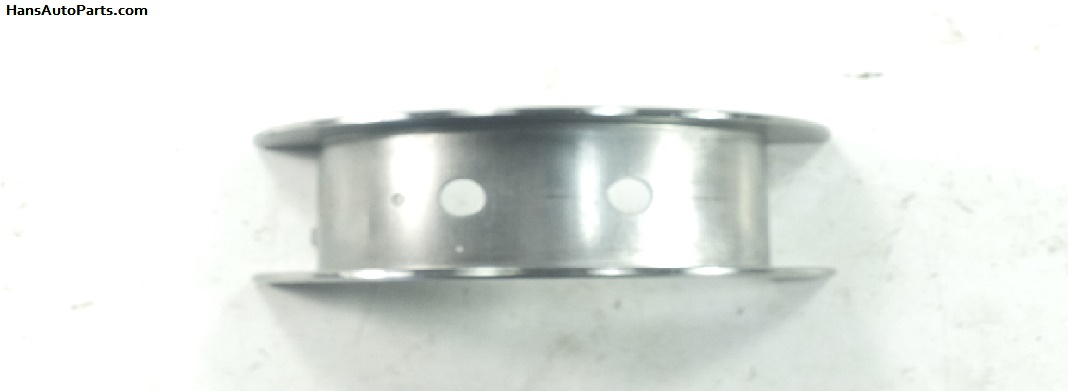

Thrust Bearing Cummins 12v 6BT 8v 4BT
3927772 Standard Size Thrust Bearing 392 777 2 St

New Thrust Bearing with oil cutout for Cummins 12v 6BT 5.9 and 8v 4BT 3.9.

Standard Size.

Fits other engines as well.



Scroll down for more detailed compatibility information.

Part Number: 3927772 3901140 3906230 3978822

Weight: 0.4 lbs.

Price: $8.00
Short Product Description:

3927772 Standard Size Thrust Bearing

Quantity to Add:





shopping cart

Questions and Answers:

Q: How is the Crankshaft Thrust Bearing inspected for Cummins B series engines and C series engines? 9/25/2024
A: The Cummins Repair Manual says that the crankshaft thrust bearing surface should be inspected for damage and should be machined, if damage is found.

Q: How is the spec for the crankshaft thrust bearing surface width for Cummins B series engines and C series engines?
9/25/2024
A: The Cummins Repair Manual says that the crankshaft thrust bearing surface width on C-Series engines should be 42.975mm MIN and 43.076mm MAX. The max wear limit is 43.127mm. For B-Series engines the Min Thrust bearing surface width is 37.475mm and 37.576mm MAX. The MAX wear is 37.602mm.



3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 2003 ISB-305 CPL:8213 Sample ESN: 57105577

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 2004 ISB 185 CPL:8136 Sample ESN: 57187100

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 2004 ISB 185 CPL:8136 Sample ESN: 57187100

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1988 4BT3.9 (105) CPL:858 Sample ESN: 44258612

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1988 4B3.9 CPL:591 Sample ESN: 21021339

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1995 4BT3.9-C CPL:730 Sample ESN: 21021339

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1997 4B3.9 CPL:767 Sample ESN: 21021339

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1996 B5.9-C177 CPL:599 Sample ESN: 46114812

3927772 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Upper. Engine Year: 1999 BT5.9-C160 CPL:1288 Sample ESN: 46114812

3906230 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1988 BT5.9 160 CPL:804 Sample ESN: 44243058

3906230 Bearing, Crankshaft Thrust Quantity: 1 Remarks: Standard Engine Year: 1988 BT5.9 160 CPL:804 Sample ESN: 44243058

Description: 3927772 Standard Size Thrust Bearing
Price: $8.00
